Rebar Estimation & Detailing
Comprehensive rebar detailing and estimation services using advanced BIM technology. Our detailed 3D modeling and quantity takeoffs ensure precise material estimates and streamlined construction processes for concrete structures.
Key Features
Advanced 3D rebar modeling
Precise quantity takeoff analysis
Detailed shop drawing generation
Accurate placement drawings
Comprehensive bar bending schedules
Key Benefits
Up to 99% accuracy in material estimation
Significant reduction in material waste
Optimized construction planning
Enhanced site productivity
Superior quality control standards
Our Process
Structural drawing analysis and verification
Detailed 3D rebar modeling and coordination
Comprehensive quantity calculation
Professional documentation preparation
Multi-level quality assurance review
Case Studies

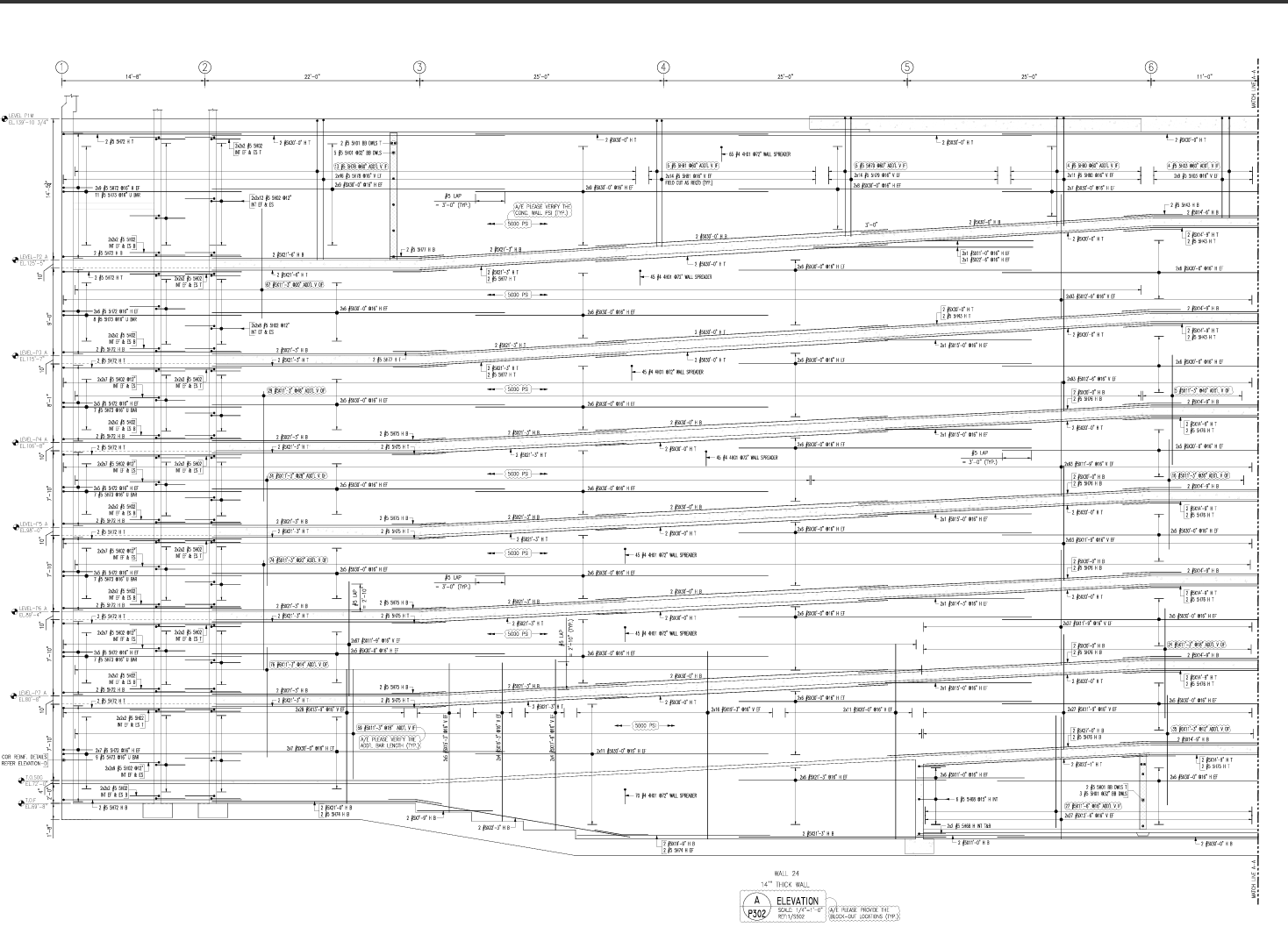

Concrete Walls Reinforcement
Detailed rebar modeling and estimation for complex concrete wall structures with varying heights and configurations.
Results:
- 99.5% accuracy in material quantity estimation
- 30% reduction in rebar waste
- Zero field conflicts during construction
Drilled Piers Foundation
Specialized rebar detailing for deep foundation elements including complex pier reinforcement arrangements.
Results:
- 40% faster detailing process
- 25% cost savings in material optimization
- Successful coordination with all trades

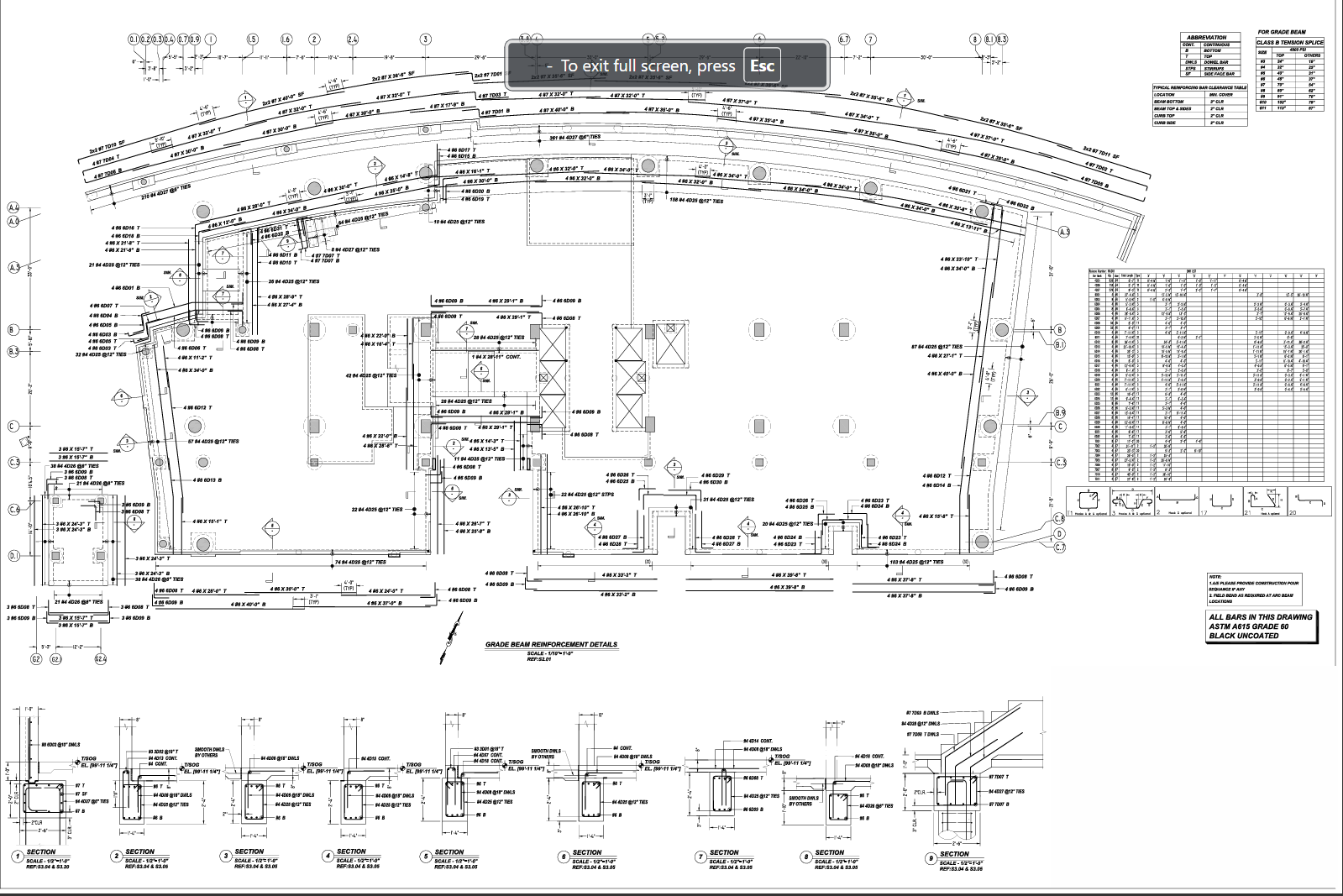

Grade Beam System
Comprehensive rebar detailing for interconnected grade beam network with varying depths and configurations.
Results:
- 35% reduction in construction time
- Improved accuracy in bar placement
- Enhanced constructability
Deck Slab Reinforcement
Detailed modeling of complex deck slab reinforcement including post-tensioning systems.
Results:
- 45% improvement in coordination efficiency
- 20% reduction in material costs
- Zero on-site conflicts

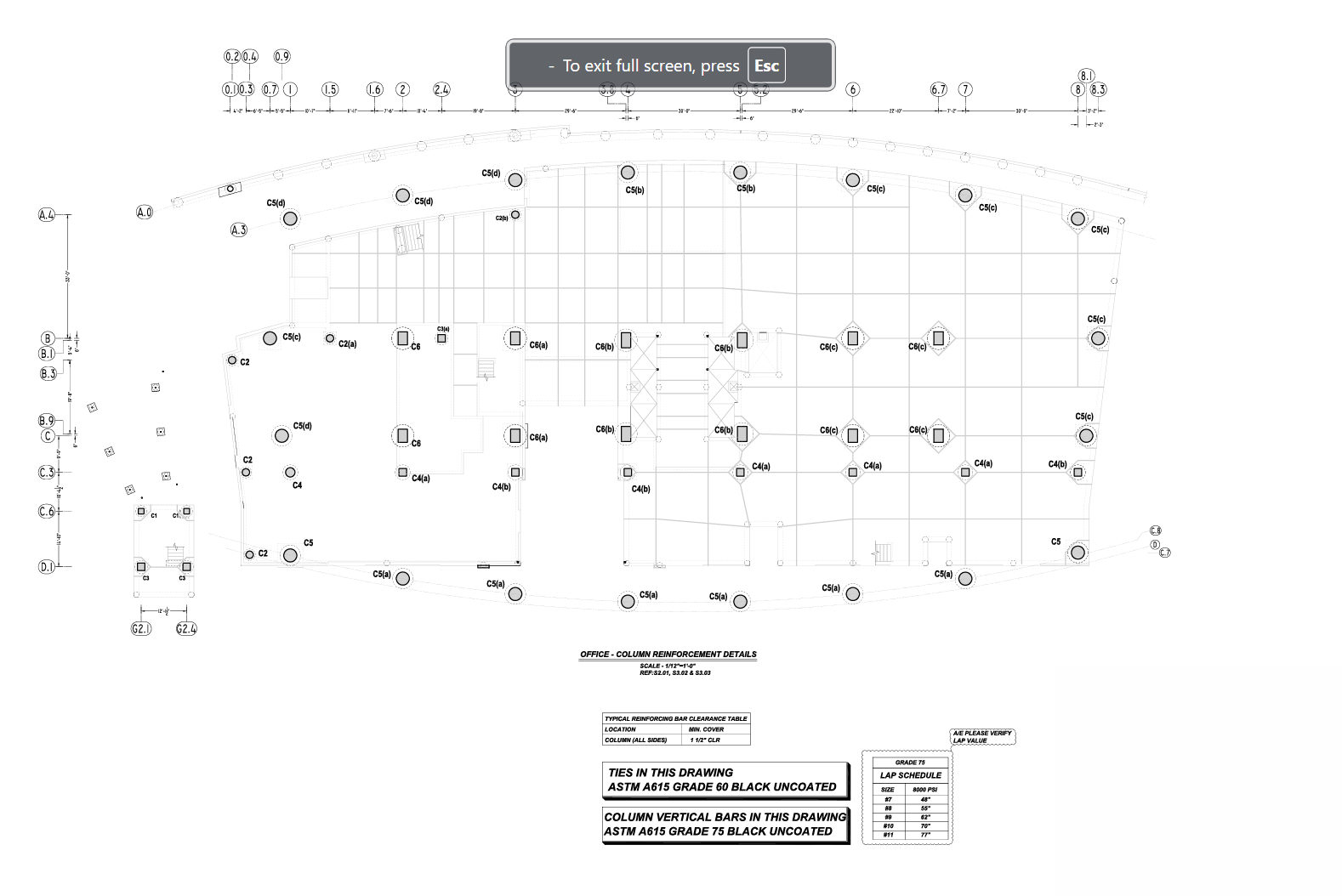

Column Reinforcement
Precision detailing of column reinforcement including splice locations and connection details.
Results:
- 50% faster review and approval process
- 100% accuracy in splice locations
- Improved construction sequence planning
Ready to Implement Rebar Estimation & Detailing for Your Projects?
Take the first step toward transforming your construction workflow with our expert rebar estimation & detailing services.
